Cast Steel Wheel Motorised Rail Trolley 15 Ton Capacity With Safe Device

Henan Perfect Handling Equipment Co., Ltd.
Contact Now

Cast Steel Wheel Motorised Rail Trolley 15 Ton Capacity With Safe Device

Brand Name : Perfect

Model Number : BXC

Certification : CE, SGS, ISO

Place of Origin : Xinxiang, China

MOQ : 1 Set

Payment Terms : L/C, T/T, Western Union

Supply Ability : 70 Sets per month

Delivery Time : 45 days

Packaging Details : The whole cart is package with tarp, and parts will be packed by wood case

Product Name : Coil Handling Trailer

Power supply : Battery powered

Operation Mode : Pandent and Remote Controller

Running Distance : Unlimited

Capacity : 15 Ton

Application : Coil Transportation

Warranty : 1 year

Color : Yellow, Customized

Wheel Type : Cast steel wheel

Usage : Used for Transport Coils, Paper Colls, etc.

Contact Now

On Rail Handling Trolley Coil Transfer Carriers with Safe Device

Introduction of Coil Transfer Carriers

PERFECT Coil Transfer Carriers are used to transport steel coils and pipes for metal industry. This coil transfer carriers are designed to be an extremely cost effective, safe and flexible load moving alternative.
The coil transfer carriers are manual guide vehicles equipped with specialized drive systems which make it possible to easily, precisely and safely move up to 200 tons. The coil heavy load transfer cart is sometimes called a heavy transporter, headless transporter or self-propelled modular transporter.

Applicable sites of transfer trolley
PERFECT treats the integrated management idea as a crucial tool to realize value for the benefits and requirements of the final customers and to promote the business on the national and international markets.The continuous tenacity of the quality management method makes our company to take responsibility for the handling problems of the customers and to solve and provide the most suitable way from a functional, technical, quality and commercial viewpoint.PERFECT conceives and manufactures a wide range of railway guided transfer carts, battery powered trolleys, intelligent self-propelled trolleys, die carts, industrial flat trailers, tilters and lifting platforms that operate in many industrial fields: metallurgy, manufacture, oil and gas, die shops, shipyards, chemical plant, automotive, mining industry, aerospace, power generation, coal industry, paper mills, metalworking, warehouse and many others!

Parameters of Rail Moving Coils Transfer Trolley

Model

BXC-2t

BXC-20t

BXC-50t

BXC-100t

BXC-150t

Rated Load(t)

2

20

50

100

150

Table Size (mm)

Length(L)

2000

4000

5500

6500

10000

Width(W)

1500

2200

2500

2800

3000

Height(H)

450

550

650

900

1200

Wheel Base(mm)

1200

2800

4200

4900

7000

Rail Inner Gauge(mm)

1200

1435

1435

200

2000

Wheel Diameter (mm)

270

350

500

600

600

Running Speed (m/min)

0-25

0-20

0-20

0-20

0-18

Motor Power(kw)

1

2.2

5

10

15

Battery Capacity

180

180

330

440

600

Battery Voltage

24

48

48

72

72

Running Time When Full Load

4.32

4

3.3

3.2

2.9

Running Distance for One Charge(km)

6.5

4.8

4

3.8

3.2

Recommended Rail Model

P15

P24

P43

QU100

QU100

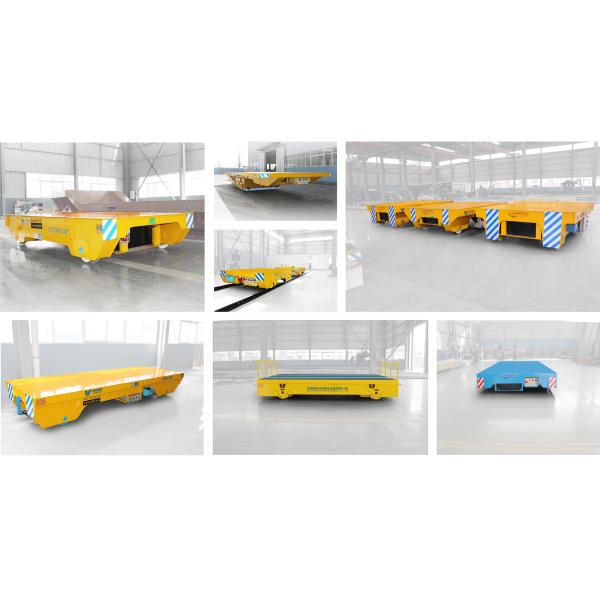

Other Products We Produce

We produce many different kinds of products. Our main products include material transfer carts, coils and pipes transport trolleys, industrial trailers, factory transport equipment, electric warehouse carriages, ladle carts, motorized battery operated transfer vehicle and so on. You can find the one you want from us.

Cast Steel Wheel Motorised Rail Trolley 15 Ton Capacity With Safe Device
Cast Steel Wheel Motorised Rail Trolley 15 Ton Capacity With Safe Device

Factory and Customer
Currently, our V shape support coils transfer wagons are not only have been sold in China, but also exported to American, Germany, Thailand, Holland, Turkey South Africa, Nepal, etc. We are becoming more and more popular around the world and get high evaluations from our cooperators.
We have been specializing in transfer cart manufacture for over 15 years.With advanced equipment,excellent engineers and professional workers, we have got the certificates of CE, SGS, ISO. Our products can be used in industrial,steel,pharmacy,mining and many other lines. So we can assure that we will provide high quality and cost-effective products for you.

Cast Steel Wheel Motorised Rail Trolley 15 Ton Capacity With Safe Device
