V-shape and roller on transfer car for coiled material applied in plant
Introduction
The BXC series coil transfer car is powered by the battery .The battery is installed inside the car.The current is supplied to pulling motor though electric control system, which makes the car start, stop, move forward, move backward, turn around, change speed, etc.With different styles and standard capacities up to 300 tons, we have the solution you need and each style can be designed for your specific application.The power supply of the coil transfer trailer can be customized, we can recommend client a suitable type according to their working site, It can be storage battery power, cable drum power, Busbar power, conductor rail power, towed cable power etc.
Production application :

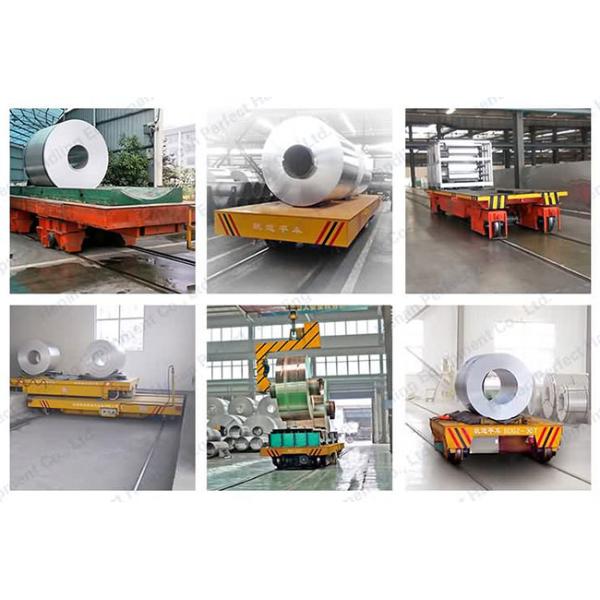

It is commonly applied to transfer heavy materials between workshops, or from workshop to warehouse.But It also can be used in the steel plant, aluminum factory, plastic pipes factory, etc to transfer rounded material, from producing line to store.
Parameter
| Model | BXC-20t |
| Rated Load(t) | 20 |
| Table Size (mm) | Length(L) | 4000 |
| Width(W) | 2200 |
| Height(H) | 550 |
| Wheel Base(mm) | 2800 |
| Rail Inner Gauge(mm) | 1435 |
| Wheel Diameter (mm) | 350 |
| Running Speed (m/min) | 0-20 |
| Motor Power(kw) | 2.2 |
| Battery Capacity | 180 |
| Battery Voltage | 48 |
| Running Time When Full Load | 4 |
| Running Distance for One Charge(km) | 4.8 |
| Recommended Rail Model | P24 |
Feature
1. For horizontal load transfers of a wide range of material, high quality Transfer Cart solution you need.
2. Transfer carts are used to carry loads along assembly lines; transfer material from one work station to the next; store and transport an entire shift worth of production. They can even be used as a stable yet moveable machine base.
3. It's necessary equipment for lifting goods, raising labor efficiency, improving working conditions.

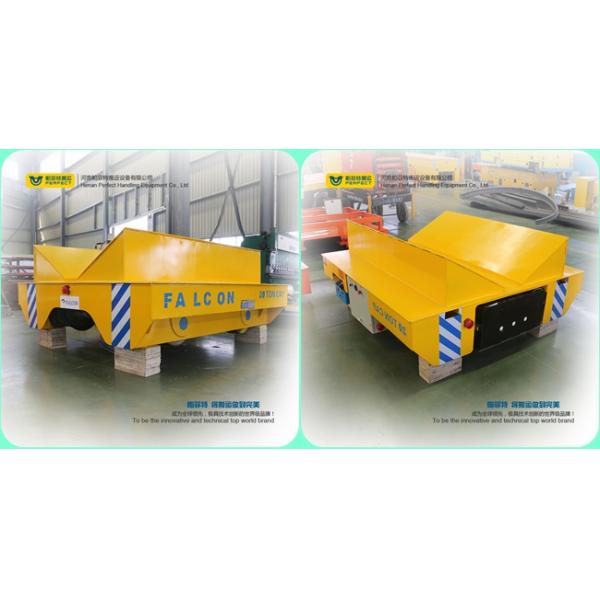

4. The V-frame device can be added on the platform order to protect the material falling down from the truck.
5. The battery power material transfer truck is applied in mold factory to transfer large dimension steel mold /steel structure. The coil transfer trailer is remote control, it is convenient to operate.
6. The coil transfer trailer is used to transfer steel mold from the production line to painting room. With advantages of anti-explosion and anti-temperature, the cart can be running in painting room or blasting room for painting or rust removing.
Factory & Customers Visiting
Our factory is located in Xinxiang City, Henan province, where the Rail Transfer Cart are manufactured and assembled. Our plant is full service from the mechanical and control engineering to fabrication and machining, we could offer all of those. With the spirit of quality, durability, satisfaction, we have run our plant for over 15 years, and our products have gotten CE, SGS, ISO certificates. With the high-quality machine, skilled workers and experienced engineers, we will supply the best Transfer Trolley With Lifting Table for you.
Product Tags:
|
|
Rounded Material Coil Transfer Trolley Electric Control System And V - Shape Images
|
