Steel Coil Transfer Trolley Upender Device With Optional Automatic Control

Name: Steel Coil Transfer Trolley Upender Device With Optional Automatic Control
Brand: Perfect
Price: 1 USD

Wholesale Steel Coil Transfer Trolley Upender Device With Optional Automatic Control from china suppliers

Brand Name : Perfect

Model Number : BXC-20t

Certification : CE, SGS, ISO

Place of Origin : Xinxiang, China

MOQ : 1 Set

Payment Terms : L/C, T/T, Western Union

Supply Ability : 60 Sets per month

Delivery Time : 45 days

Packaging Details : The whole cart is package with tarp, and parts will be packed by wood case

Product Name : Steel Coil Transporter Cart

Power supply : Battery powered

Operation Mode : Pandent and Remote Controller

Running Distance : Unlimited

Capacity : 20T customized

Application : Steel factory

Warranty : 1 year

Color : YELLOW customized

Wheel Type : Cast steel wheel

Usage : Used for transport coils, paper rolls, etc.

Contact Now

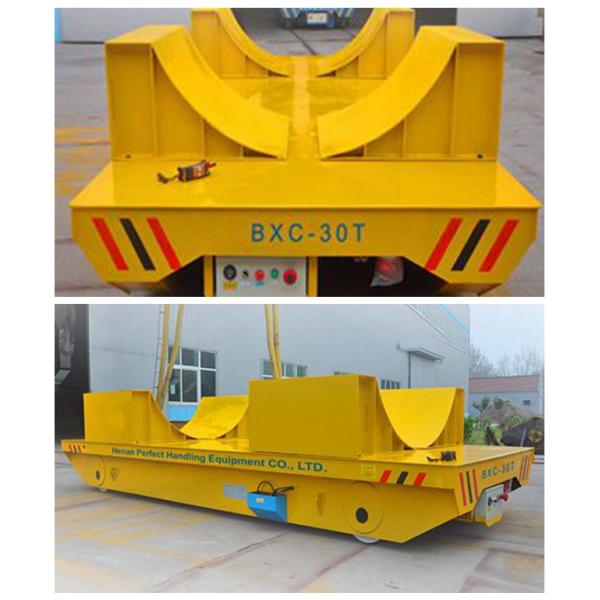

Steel Coil Transporter Car with Upender Device for Transferring

Introduction of Coil Transfer Trolley

The Coil rail transfer trolley can be powered by battery. There are mounted V-shape and roller on Coil rail transfer trolley to protect the coil from falling down from the Coil rail transfer trolley.The V-shape supporting can be designed according to coil diameter, and roller distance can be adjusted as per coil die.V-shape supporting and roller can be removable from the Coil rail transfer trolley.We can design coil Coil rail transfer trolley according to the workshop application, material dimension.It can be applied in all kinds of occasion even severe working environment.

NOTES:

Flat deck or fixtures for transporting special payload;
Custom deck configurations may include lift, tilt, or rotate function;
Payload from 1 ton to 300 tons;
Fixed speed or variable speed capabilities;
On board, charging is available if battery drives;
With forwarding or backing driving;
Options for automatic control;
Available safety equipment includes horn, lights, emergency stop, bumpers, and detector.

Technical Parameter of Coil rail transfer trolley

Model		2t	20t	50t	100t	150t
Rated Load(t)		2	20	50	100	150
Table Size(mm)	Length(L)	2000	4000	5500	6500	10000
	Width(W)	1500	2200	2500	2800	3000
	Heigth(H)	500	600	700	1000	1200
Wheel Base(mm)		1200	2800	4200	4900	7000
Rail Inner Gauge(mm)		1200	1435	1435	2000	2000
Wheel Diameter(mm)		270	350	500	600	600
Wheel Quantity		4	4	4	4	8
Ground Clearance(mm)		50	50	50	75	75
Running Speed(min)		0-25	0-20	0-20	0-20	0-18
Motor Power(kw)		0.8	2.5	5.5	11	15
Running Distance(m)		25	30	50	50	50
Max Wheel Load(KN)		14.4	77.7	174	343.8	265.2
Reference Weight(t)		2.5	5.6	7.8	14.1	26.2
Recommended Rail Model		P15	P24	P43	QU100	QU100

Steel Coil Transfer Trolley Upender Device With Optional Automatic Control

Component of Coil rail transfer trolley

Steel Coil Transfer Trolley Upender Device With Optional Automatic Control

Details of Coil rail transfer trolley

Application Sites of Coil rail transfer trolley
The Coil rail transfer trolley is mainly applied in assembly line(ring production line,loop production line),metallurgy industry(steel lade),warehouse transport,ship industry(maintenance, assemcle,container transport),work piece transport in workshop,lathe transport,steel factory(steel billet,steel plate,steel coil,steel pipe,section steel structure),construction(bridge,simple building,concrete column,)petroleum industry(oil pump,sucker rod and parts),energy(polycrystalline silicon,generator,windmill),chemical industry(electrolytic cell,retort etc),railway(rail maintenance,rail welding,train tractor).

Steel Coil Transfer Trolley Upender Device With Optional Automatic Control

Customers Visiting

Steel Coil Transfer Trolley Upender Device With Optional Automatic Control

Our Factory

Steel Coil Transfer Trolley Upender Device With Optional Automatic Control

Our factory is located in Xinxiang City, Henan province, where the Coil rail transfer trolley is manufactured and assembled. Our plant is full service from the mechanical and control engineering to fabrication and machining, we could offer all of those. With the spirit of quality, durability, satisfaction, we have run our plant for over 15 years, and our products have gotten CE, SGS, ISO certificates. With the high-quality machine, skilled workers and experienced engineers, we will supply the best Coil rail transfer trolley for you.

Service

Our commitment: The load bearing safety factor of the Coil rail transfer trolley is no less than 120%.
Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.
16 hours engineering service and 24 hours internet service for our customers.
During the warranty period, if our Coil rail transfer trolley can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.
