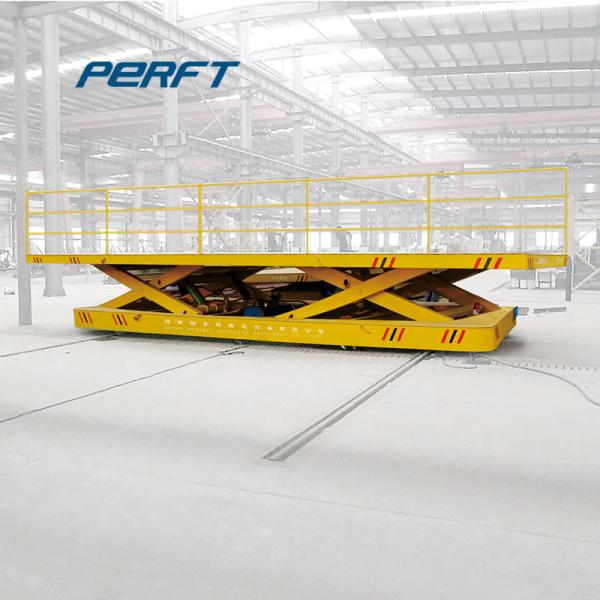

Automatic Hydraulic motorized Transfer Cart for Heavy Loading
Description
The Automatic Hydraulic motorized Transfer Cart is powered by the battery, the DC motor, and gear reducer is controlled by DC control system to drive wheels and make the automatic transfer cart start, stop, go forward and backward, speed up and slow down and so on.
Product Details
Product parameters
Technical parameters of The Automatic Hydraulic motorized Transfer Cart for Heavy Loading (Customizable)
| Model | BXC-2T | BXC-10T | BXC-20T | BXC-30T | BXC-50T | BXC-63T | BXC-150T |
| Rated load (T) | 2 | 10 | 20 | 30 | 50 | 63 | 150 |
| Table size | length(L) | 2000 | 3600 | 4000 | 4500 | 5500 | 5600 | 10000 |
| Width(W) | 1500 | 2000 | 2200 | 2200 | 2500 | 2500 | 3000 |
| Height(H) | 450 | 500 | 550 | 600 | 650 | 700 | 1200 |
| Wheel Base (mm) | 1200 | 2600 | 2800 | 3200 | 4200 | 4300 | 7000 |
| Wheel Diameter(mm) | Φ270 | Φ300 | Φ350 | Φ400 | Φ500 | Φ600 | Φ600 |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 75 | 75 |
| Motor Power (Kw) | 1 | 1.6 | 2.2 | 3.5 | 5 | 6.3 | 15 |
Product advantage
· Safe and environment friendly
· Big starting power
· Small impact to the gear reducer
· No restriction of the running distance
· Canrunning on s-shape rail, arc-shape rails
· Has no limit on working distance
· Anti-explosion,Anti-high temperature
· Stable start, big starting power, long lifetime.
Our service
1. We offer a full range of customized services
2. We can customize the transfer cart according to your needs for the tonnage, shape, color, safety device and the way of operation.
Welcome to consult
Consult now for free technical advice from engineers
About us
Henan Perfect Handling Equipment Co., Ltd has been devoting to development Manufacture & Sale Of Material Handling System for more than 15 years. We Invest a large amount of money each year for product innovation. Therefore, our products are in a leading position in the industry.
