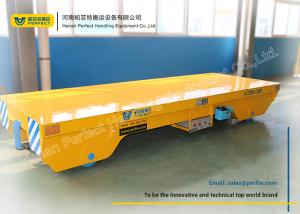

Overseas Service Track Flat Car High Frequency Use Timber Mill Electric Carriage
Introduction of High Frequency Use Timber Mill Electric Carriage
The high frequency use timber mill electric carriage is a kind of automated material handling equipment powered by cable reel which is mounted on the carriage. Of course, our product includers different power, the proper solution will be recommended to you after learning your requirements. Nowadays, this series of high frequency use timber mill electric carriage has been widely applied in the industry transportation field all over the world. And our electric carriage is available in a number of configurations specifically designed to suit the needs of our customers.

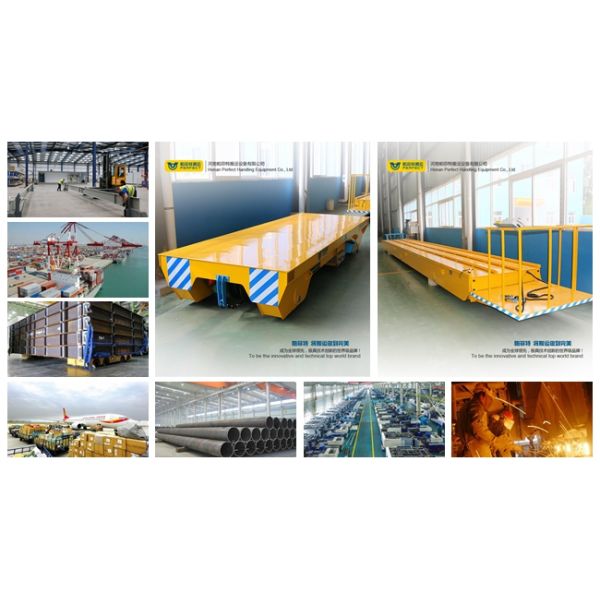

Application Sites of High Frequency Use Timber Mill Electric Carriage
The high frequency use timber mill electric carriage is suitable for various occasions, for example, steel field, forged field, mold field, heavy industrial, light industrial, paper making field, construction machinery maker, shipyard, port cargo yard, warehouse, assembly line, spray booth, air and space etc.
For industry usage, it has been widely used with hot market. Any interests and problems, please contact with us in any time. We will try our best to help you. hope rich experience can help you well.
Working Principle of High Frequency Use Timber Mill Electric Carriage
The high frequency use timber mill electric carriage is the cable reels powered and it gets power AC 380v through the device of cable reel , and the motor is controlled by the power through AC control system that make the timber mill electric carriage to start, stop, go forward , backward , adjust the speed and so on.
Advantages of High Frequency Use Timber Mill Electric Carriage
- The high frequency use timber mill electric carriage can be applied in many occasions, such as easy explosion, high temperature, ferry etc.
- Stable start, big starting torque, small impact to gear reducer, low operation voltage, long lifetime...
- This kinds of high frequency use timber mill electric carriage is cable reel powered, so it is suitable for high using frequency working condition, and the working time is limitless
- Professional team from Henan Perfect Handling Equipment Co., Ltd. and the proper solution can be provided once getting for your inquiry.
- The The high frequency use timber mill electric carriage is customized as per your true demand.
Main components of High Frequency Use Timber Mill Electric Carriage
Cart Frame
The frame adopts box beam structure according to the crane principle and combined with the design of the electric carriage. It is with large load capacity, long service lifetime. Besides, not easy deformation and can effectively ensure the smooth of the platform.
Magnetic Coupling Cable Reel
We adopt the magnetic coupling cable reel, it can make sure that there is no force on the cable and the cable can be wound and released evenly. if it is used in short distance transportation,It is a better choice without limited time.
Cast Steel Wheel
The wheel, its material is ZG55, Change conveniently, install easily, the larger capacity cargoes can be transported, up to now, the largest capacity has been reach to 300 tons.
Dead Man Stop from Germany Sick
The dead man stop, with flexible reaction, can stop automatically, when meeting some obstacles, And compared with the common one,the fan-shaped sensoring zone can be realized, which makes the operation safer.
Parameter Table of Electric Steel Product Plant Transfer Bogie
| Model | BJT-2t | BJT-20t | BJT-50t | BJT-100t | BJT-150t |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 |
| Table Size (mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 |
| Height(H) | 500 | 600 | 700 | 1000 | 1200 |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 200 | 2000 |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 |
| Motor Power(kw) | 0.8 | 2.5 | 5.5 | 11 | 15 |
| Running Distance(m) | 25 | 30 | 50 | 50 | 50 |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 |
| Reference Weight(t) | 2.5 | 5.6 | 7.8 | 14.1 | 26.2 |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 |
Company Strength
Henan Perfect Handling Equipment Co., Ltd is a steel high frequency use timber mill electric carriage manufacturing enterprise integrated in scientific research, production and marketing. There are more than 100 workers including 3 senior engineers and 7 engineers and 10 technicians. The scientific management, advanced processing technology and innovative manufacturing theory make the company become the material handling manufacturing and exporting base in China.
How to Choose a Suitable High Frequency Use Timber Mill Electric Carriage?
- Application ?
- Transporting Cargoes?
- Capacity?
- Table size:length,width and height?
- Running distance?
- Working hours in per day?
