Large table conductor cable power pallet transfer trolley car for sale
pallet transfer car is powered by low voltage electricity from railways, the kind of transfer car is one of the most convenient and it often can be widely used in the industry field an so on. Of course,compared other transfer equipement,it main features as it follows,its rails is isulated with the ground, and its wheels are isulated with the ground, so doesn't others.it is the advantage that the tracks carriage have, why we design is that its convenient (only rails needed) and its simple operation. About us, Our company have professional team and utilize more advanced technique to make it , and it has been a long year to manufacture it attentively. Simutaneously, it will be more easy and flexible.Simple structure and low cost make it popular for workshop transportation. The Pallet Handling Transfer Car can be applied in the occasion with any loading capacity and high using frequency. If the running distance is beyond 50m, the Pallet Handling Transfer Car needs to install cable arranger to help with cable rolling. The max running distance is up to 200-400m.
Our Pallet Handling Transfer Car not only have sold across the country, but also exported to US, Germany, Thailand, Netherlands, South Africa, Syria, Turkey, Nepal etc. There are more than 150 employees including 10 senior engineers, 15 engineers, 25 technicians, the employees accepted higher education including postgraduate, undergraduate, junior colleague student occupied 80%. We cooperate with the Nanjing Engineering Institute all the year round and a senior welding engineer personally directs the production. Our company passed ISO9001 Quality management system and got the CE, SASO, SGS certificate.
| Model | BJT-2t | BJT-20t | BJT-50t | BJT-100t | BJT-150t |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 |
| Heigth(H) | 500 | 600 | 700 | 1000 | 1200 |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 |
| Motor Power(kw) | 0.8 | 2.5 | 5.5 | 11 | 15 |
| Running Distance(m) | 25 | 30 | 50 | 50 | 50 |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 |
| Reference Weight(t) | 2.5 | 5.6 | 7.8 | 14.1 | 26.2 |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 |

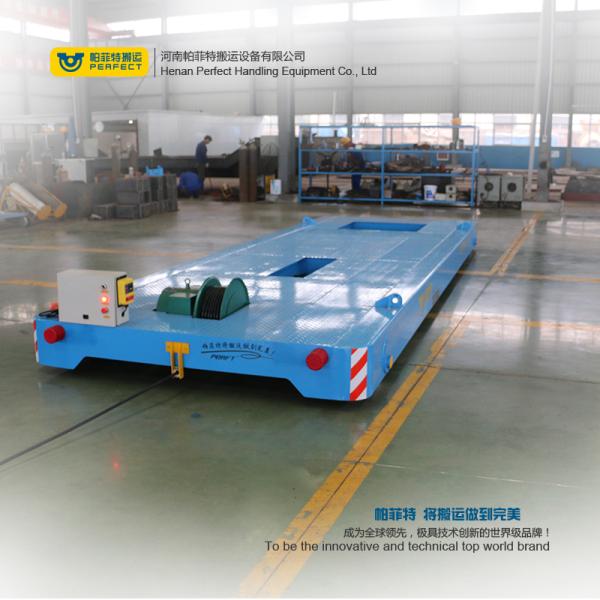

Detailed Image Of Pallet Handling Transfer Car

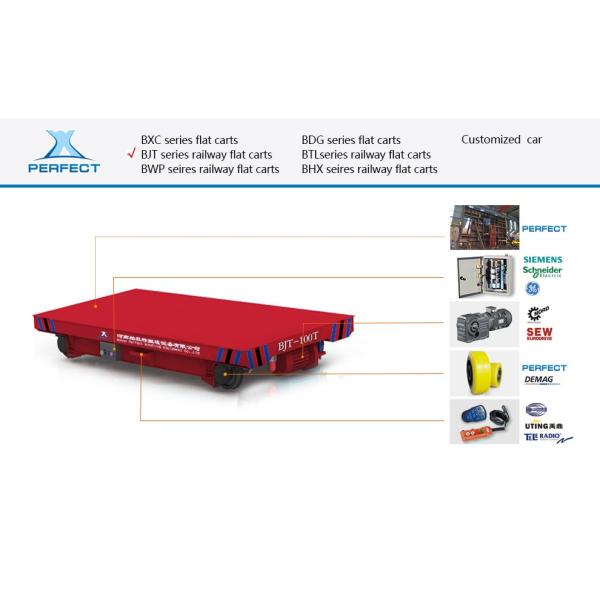

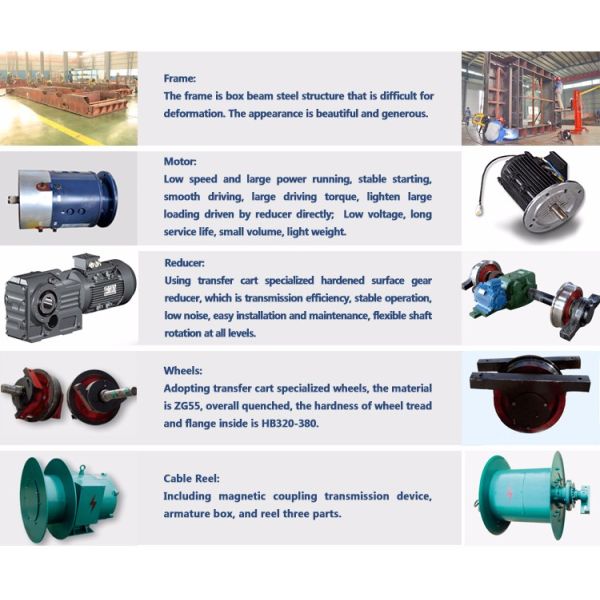

Components Of Pallet Handling Transfer Car
Functions & Advantages Of Pallet Handling Transfer Car
- The Pallet Handling Transfer Car is Anti-high temperature,Anti-high explosion;
- The Pallet Handling Transfer Car is powered by cable drum;
- With lifting holes, Pallet Handling Transfer Car is convenient to shipment;
- The Pallet Handling Transfer Car has a feature of stable start, big starting power, long lifetime;
- The Pallet Handling Transfer Car can run on the C-form track or S-form track;
- Running distance of Pallet Handling Transfer Car is unlimited;
- Safe and convenient operation is available for Pallet Handling Transfer Car;
- High using frequency for Pallet Handling Transfer Car.
Application Sites Of Pallet Handling Transfer Car
The Pallet Handling Transfer Car is mainly applied in assembly line(ring production line,loop production line),metallurgy industry(steel lade),warehouse transport,ship industry(maintenance, assemcle,container transport),work piece transport in workshop,lathe transport,steel factory(steel billet,steel plate,steel coil,steel pipe,section steel structure),construction(bridge,simple building,concrete column,)petroleum industry(oil pump,sucker rod and parts),energy(polycrystalline silicon,generator,windmill),chemical industry(electrolytic cell,retort etc),railway(rail maintenance,rail welding,train tractor).
- Our commitment: The load bearing safety factor of the Pallet Handling Transfer Car is no less than 120%.
- Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.
- 16 hours engineering service and 24 hours internet service for our customers.
- During the warranty period, if our Pallet Handling Transfer Car can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
- Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.
