Wireless Control Electric Heavy Duty Handling Equipment , Rail Transfer Trolley
Overview for Electric Pallet Transfer Carts
The wireless control electric pallet transfer carts manufacturers on rail is designed for transporting heavy cargoes or equipment from one bay to another in factory. It can be used indoor or outdoor. The fields include metallurgy, foundry, new factory construction and shipbuilding and so on. With different styles and standard capacities up to 300 tons, we have the high quality material handling solution you need and each style can be designed for your specific application.
Types of Electric Pallet Transfer Carts
Our wireless control electric pallet transfer carts main contains battery powered transfer car, cable drums powered transfer cart, armored line powered transfer trolley, diesel engine track carrier, conductor rail powered pallet transfer vehicles and steerable transfer cars with remote switch.
If you are unsure as to what type of transfer carts will best serve your needs. Spending a few minutes now discussing the needs of your application could save you dollars in the future. According to your business needs, we will provides you with the most professional products ,our products are found in all sectors, with excellent craftsmanship and technical team, so we produce wireless control electric pallet transfer carts applications in various industries have been widely used.
Diverse Industries Application of Electric Pallet Transfer Carts
General Pallet Transfer Carts

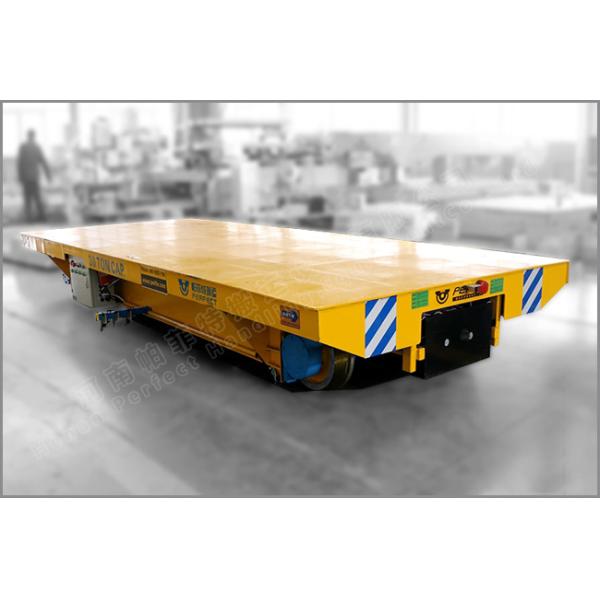

The general pallet transfer carts usually designed as flatbed type and can be used in many occasions for material transport. The picture below is this type:
Construction Pallet Transfer Carts
The construction pallet transfer carts can be used for bridge construction site, railway building occasion, bulding sites etc. It can transport concrete column, stone breaker, engineering construction machine etc.
Port Pallet Transfer Carts
The port pallet transfer carts are typically used for container and cargoes transport and storage.

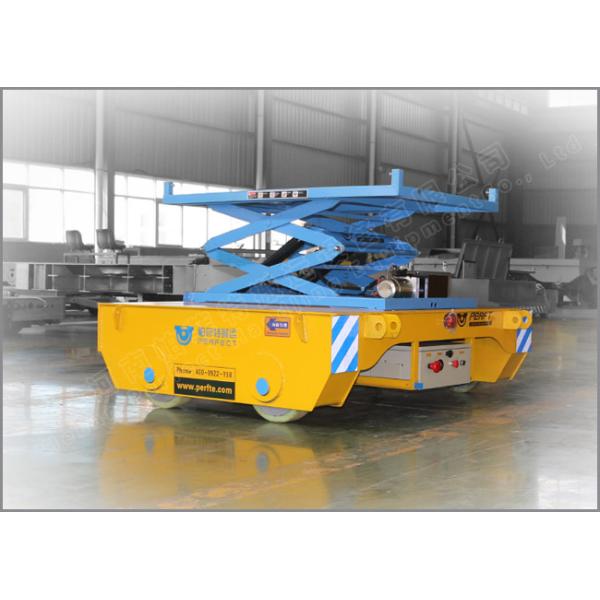

Lifting Pallet Transfer Carts
The lifting pallet transfer carts refers to the hydraulic lifting platform transfer carts. This type transfer cars combined with the transfer carts and hydraulic lifting device so that it can satisfy different customers' working task.
Technical Parameters of Electric Pallet Transfer Carts
BXC SERIES TRANSFER CARTS TECHNICAL PARAMETER TABLE |
| Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | BXC-150t |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 |
| Table Size (mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 |
| Height(H) | 450 | 550 | 650 | 900 | 1200 |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 200 | 2000 |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 |
| Battery Capacity | 180 | 180 | 330 | 440 | 600 |
| Battery Voltage | 24 | 48 | 48 | 72 | 72 |
| Running Time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 |
| Running Distance for One Charge(Km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 |
Packing & Delivery Details of Electric Pallet Transfer Carts
1.The transfer cart parts will be packed by plywood crate, for avoiding the demage from goods crash and impact during the delivery.
2. The whole cart will be packed by tarp, for preventing rust from soppy condition during the transportation.
3. We also can package the electric pallet transfer carts as your specific needs.
3. Only the best transport solution will be taken for saving your cost uttermost on finance, security and time.
Who We Are
We have 15 years manufacturing history of material transfer cart and also have a good reputation at home and abroad. Many clients across the world and abroad come to study advanced technology and survey products endlessly. The visited customers give a high evaluation and appreciation to our management, technology, producing craft and product quality.
