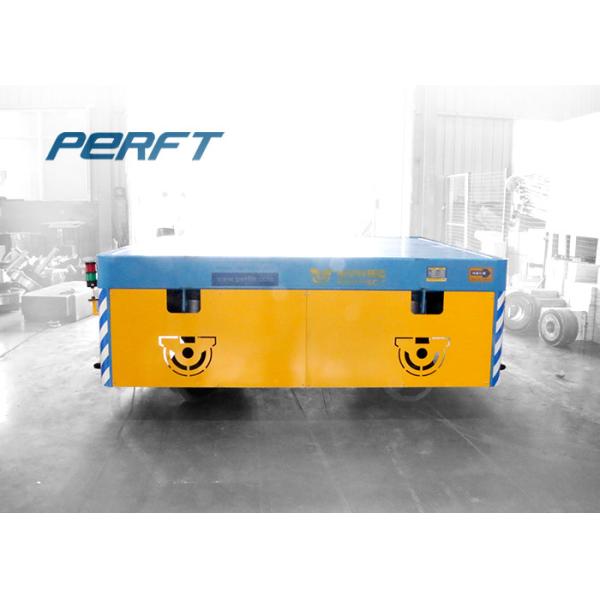

1-30T Electric Heavy Duty cart with Remote And Hand Wireless Control
Descraptions
The BWP series cart usually,accumulator,mains powered and generator are choose as power source.The current is supplied and generator are choose as power source.The Car is supplied to pulling motor through electric control system,which makes the cart start,stop,move background,turn around and realize other functions.Also, we will provide intelligent automatic rapid charger with the car. Positioning fixture, lift platform and other assistive device are optional to meet different demands on various occasions. The PLC is also alternative if The cart is necessary.
Advantages
1.Needn’t run via the rails, which gets rid of relying for the rails.
2. Can not lead to impairment for the cement ground, and can run freely, go forward, back forward, turning.etc.
3.Battery powered, so only charged fully.
4.Can it run freely without limited distance.
5.Will be provided getting for your inquiry.
Detailed Image
The cart consisted of power source,gear train,steel structure bearing frame,steering gear,running gear,control system and fault diagnosis module to better the Electric Trackless Transfer Flat Car.
Technical parameter table
| Rated Load(T) | 5 | 10 | 15 | 20 | 30 | 40 | 50 |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Wheel Base(mm) | 1500 | 1500 | 1500 | 1700 | 1700 | 1800 | 1800 |
| Turnning Radius(mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 |
| Axles Distance(mm) | 2500 | 3100 | 3400 | 3900 | 4300 | 4800 | 5200 |
| Motor Power(Kw) | 3.5 | 5 | 6 | 7 | 10 | 12 | 15 |
| Running Speed(m/min) | 0-15 | 0-15 | 0-15 | 0-15 | 0-15 | 0-12 | 0-12 |
| Cart Weight(t) | 4.3 | 5.3 | 6.6 | 7.9 | 8.8 | 10 | 10.5 |
| Impacted Rated Load(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 |
| Battery Capacity(Ah) | 180 | 160 | 180 | 180 | 250 | 300 | 330 |
| Battery Voltage(v) | 36 | 48 | 48 | 48 | 48 | 48 | 48 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 44 | 4 | 4 |
| Ground Requirement | Cement Floor | Cement Floor | Cement Floor | Cement Floor | Cement Floor | Cement Floor | Cement Floor |
Processing Line of the 30t Flat bed industry material handling electric trackless transfer car with Remote and Hand wireless control
CNC Cutting and Preliminary Assembling
Welding and Post weld treatment
Assembling and Spray Primer

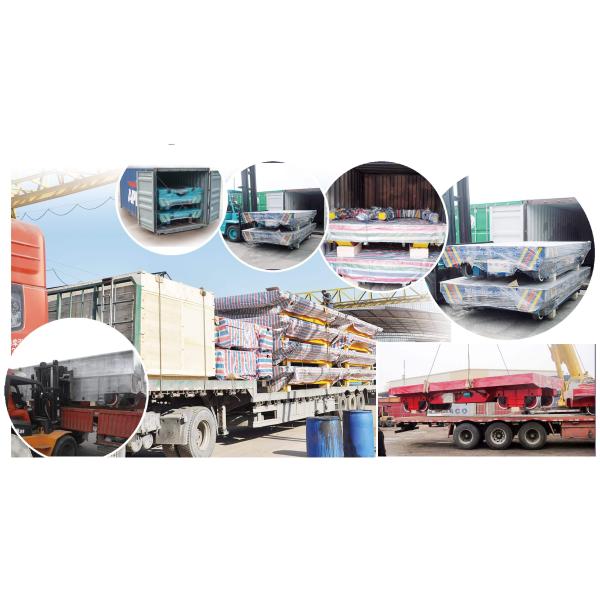

Packaging & Shipping
The Heavy Load Industrial Handling body is packed with tarp, the cart wheel and parts will be packed with wooden case.
The cart lenght is less than 5.9m, the width is less than 2.2m. Industrial Large Motorized Transport Carts will be transported by 20ft container. If the length is longer than 5.9m and less than 12m, it will be transported by 40ft container.If the quantity is 2 sets or 3 sets, they can be transported by full container. If the quantity is 1 set, it can be transported by LCL Container.If the length is less than 12m, the width is beyond 2.2m. It needs to be transported by FR container(20 or 40 ft). If the cart is beyond above dimension, It needs to be transported by BB container.Determine the size & material of the box according to the shape & number of products.
Price Term: EXW, FOB, CIF, C&F,DDU, DDP.
Our Service
We always follow the principle that customers are our god and we will think about all the things in the position of consumers, to deal with all problems in high efficient and serious attitude. We will provide best service from the beginning till the end and pay more attention to credibility. Perfect is pursuing a perfect combination in quality and art and always try our best to provide most satisfied service for our consumers. Your satisfaction for the 30t Flat bed industry material handling electric trackless transfer car with Remote and Hand wireless control is what we are striving for!
Certifications
Q & A
1.Q:What is the MOQ?
A: At present, our MOQ is 1 set.
2. Q: What is the size and load of this Trackless Transfer Car ?
A:The size and load of our this trackless transfer car is customized design according to your requirement.
3. Q:Can choose the power supply?
A:Yes,such as the cable drum,rail powered,busbar powered,trailing cable powered,etc.
4. Q: What is the leading time, delivery term, and payment term ?
A: Usually our leading time is 45 days, for some special rail coil transfer car, such as rail coil transfer car, it maybe longer to 60 days. About the delivery term, we accept EXW, FOB, CIF, DDU. About the payment, we accept T/T or L/C.
